| Innovative Forming System for IMD/FIM Technology |
 |
Multiple Forming Functions for All Kinds of Plastic Film Materials. |
|
Applicable Materials : Polycarbonate, PMMA, PU-Leather/Plastic Film Composite Materials, ¡K.etc. |
|
Excellent 3D Forming Accuracy and Image Registration |
|
No Excess Stretch on the Side Wall after Forming |
|
Fully Programmable Forming Process and TFT LCD Touch Screen Control Panel |
|
Very Flexible and Easy to Use, Very Stable for Mass Production Running |
|
The Best Plastic Film Forming Machine for IMD Products in all Plastic Film Materials, 3C Products/Automotive/Motorcycle Speed Dails,¡Ketc. |
| |
|
| |
| |

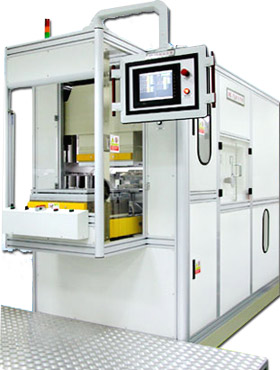

LAMIN VHPF4040 IMD/FIM Process Plastic Film 3D Forming Machine |
|
| Max. Forming Dimension |
400 x 400 m/m |
| Max. Forming Height |
100+ m/m( Detail Spec. to be discussed ) |
| Top/Bottom Platform Size |
500 x 500 m/m |
| Max. Clamping Power |
200 Ton( Hydraulic Machine ) |
| Control Panel |
TFT Color Touch Screen: To show Forming Process, Temperature Settings, Error Messages, ¡K, and so on. 20 sets of memories for parameters setting up |
| Machine Construction |
Heavy Duty Chassis/Body Construction, Full Cover |
| Dimension |
1,420W x 3,440D x 2,445H m/m |
| Machine Weight |
6,700 Kg |
| Utility |
380V, 3Ph, 80A |
|
|
|
|
|
| |
| |
|
|
