An Electron Beam is a versatile tool
whose effect is primarily based on a
short-duration, localized input of heat
into a substrate material. An important
advantage of electron beam welding is the
ability to be able to weld materials down
to considerable depths: although strongly
absorbed by the material, the electron
beam is able to penetrate deep into the
material due to the deep-weld effect. This
makes this technique an ideal tool for
joining combinations of materials.
Our offer
electron beam welding and microwelding
of parts
Homogenous and heterogeneous
combinations of materials, e.g. steel-steel
or copper-steel
Welding of parts having very different
geometries, e.g. membranes with parts
of housings or corrugated hoses with
connectors
Local melting of surface layers
Electron beam structuring of metallic and
non-metallic materials, in particular layers
and layer systems
Inscribing and engraving of workpieces
Technical specifi cations

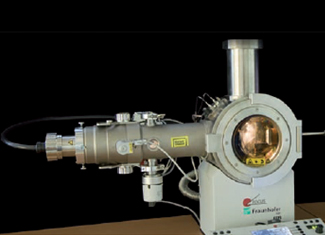

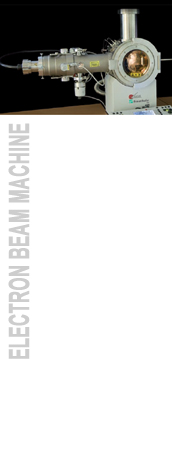

Electron Beam Generator
Target Dimensions
beam power up to 2 kW / acceleration voltage up to 60 kV
max. beam deviation angle a ± 35°
workpiece insertion and handling
1 axis of rotation (Z), chuck with clamping diameter of 3 ... 88 mm
rotation speed: continuous from 0 ... 32 min-1
vertical translation (Y): 120 mm
vertical adjustment speed: 0 ... 3.5 mm/s
substrate (part) size up to 150 mm x 150 mm x 150 mm (L x B x H)
vacuum system
working pressure (chamber) = 5 x 10-4 mbar
short cycle times, as evacuation time < 2 min and pressurization time < 30 s
SEM imaging system
scanning electron imaging mode (SEM) with a choice of two detectors
display in material and/or topographic contrast, max. scanned area ca. 100 x 150 mm2
resolution down to 25 µm
process control
teach-in programming
automatic standard welding processes / programmed defl ection control
alternating operating mode welding-scanning-welding
engraving of any grayscale images
