Wet-on-Wet printing |
|
4 colors waterless offset printing unit. |
|
2 colors screen printing stations |
|
3 UV curing systems |
|
Automatic special handling system for loading and unloading |
|
Highest precision system for safe position of CD/DVD |
|
Fast waterless plate changing within 30 seconds |
|
Throughput : 3,000 discs/hour |
|
Small dimension 3,470L x 1,550W x 2,400H mm |
|
Print check, ID code check, 8cm and CD card (option) |
|
High feeding system, loading 1,600pcs, unloading 1,600pcs |
|
| |
| Machine |

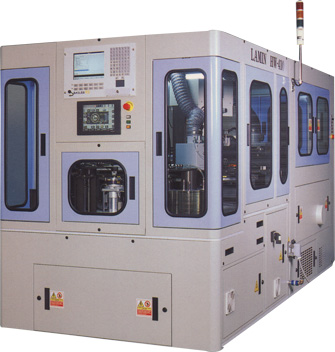

CD/DVD Waterless Offset Printer |
| Model No. |
HW- 430 |
| Disc Specification |
12 cm disc (standard), 8cm disc & Card Disc (Option) |
| Printing Process |
Wet - on - wet printing 4 colors 1 UV
|
1-color screen |
|
4 Colors Offset ( K/C/M/Y ) |
|
1 Color Screen |
|
| UV Curing System |
3 sets
|
| PLC System |
Japan Mitsubishi |
| Speed |
3,600 pcs/hour
|
| PS Plate |
690 L x 204 W x 0.24 T mm, Toray (Japan)
|
| Frame Dimension |
318 x 278 mm (or customer demand)
|
| Electricity |
220V, 60 Hz, 3 Phase + Ground (or customer demand)
|
| Compressed Air |
20 m3/Hr. 0.49 Mpa
|
| Machine Dimension |
3,470 L x 1,550 W x 2,400H mm
|
| Net Weight |
5,600 Kg |
|
|
|
|
| |
| |
|
|
